CMD Contour Power and AV/Data Module
Contour is available with a metal or plastic body and can be customised to support a range of UK and international, USB charging and AV sockets and is fully compliant to current safety regulations. The body is made from anodised aluminium.
£0.00 (£0.00 exclusive of VAT)
Description
Features:
- Choice of international power, data & media connectors to meet most specifications
- UK Sockets are individually fused at 3.15A or 5A to allow compliance with BS 6396
- Schuko sockets are shuttered and un-fused
- Available with plastic or metal body
- No visible screws
- Suitable for slatwall/tool rail mounting
- Available in white, black and grey options, or any combination of these colours, as required.
- All standard options are supplied with a 1 metre mains lead to 3 pole connector
- Complies with BS 5733 (UK) & IEC 60884-1 (Europe)
Options:
| Contour Plastic Power Module | ||
| 94050007 | Black/ White |
1 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94050008 | Grey/ White |
1 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94050009 | All White | 1 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94050010 | All Black | 1 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94AC0007 | Black/ White |
Contour 1 x power, 1 x twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94AC0008 | Grey/ White |
Contour 1 x power, 1 x twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94AC0009 | All White | Contour 1 x power, 1 x twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94AC0010 | All Black | Contour 1 x power, 1 x twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94PS04GST | Black/ White |
2 x power, 1m mains lead to 3 pole connector |
| 94PS01GST | Grey/ White |
2 x power, 1m mains lead to 3 pole connector |
| 94PS07GST | All White | 2 x power, 1m mains lead to 3 pole connector |
| 94PS10GST | All Black | 2 x power, 1m mains lead to 3 pole connector |
| 94050011 | Black/ White |
2 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94050012 | Grey/ White |
2 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94050013 | All White | 2 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94050014 | All Black | 2 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94AC0012 | Black/ White |
Contour 2 x power, 1 twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94AC0013 | Grey/ White |
Contour 2 x power, 1 twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94AC0014 | All White | Contour 2 x power, 1 twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94AC0015 | All Black | Contour 2 x power, 1 twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94U048GST | Black/ White |
2 x power, 2 x RJ45 data Cat6, 1m mains lead to 3 pole connector |
| 94U049GST | Grey/ White |
2 x power, 2 x RJ45 data Cat6, 1m mains lead to 3 pole connector |
| 94U050GST | All White | 2 x power, 2 x RJ45 data Cat6, 1m mains lead to 3 pole connector |
| 94U051GST | All Black | 2 x power, 2 x RJ45 data Cat6, 1m mains lead to 3 pole connector |
| 94PS06GST | Black/ White |
4 x power, 1m mains lead to 3 pole connector |
| 94PS03GST | Grey/ White |
4 x power, 1m mains lead to 3 pole connector |
| 94PS09GST | All White | 4 x power, 1m mains lead to 3 pole connector |
| 94PS11GST | All Black | 4 x power, 1m mains lead to 3 pole connector |
| Contour Metal Power Module | ||
| 94050001 | Black | 1 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94050002 | Grey | 1 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94050003 | White | 1 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94AC0001 | Black | Contour 1 x power, 1 x twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94AC0002 | Grey | Contour 1 x power, 1 x twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94AC0003 | White | Contour 1 x power, 1 x twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94MPS01BGST | Black | 2 x power, 1m mains lead to 3 pole connector |
| 94MPS01GGST | Grey | 2 x power, 1m mains lead to 3 pole connector |
| 94MPS01WGST | White | 2 x power, 1m mains lead to 3 pole connector |
| 94050004 | Black | 2 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94050005 | Grey | 2 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |
| 94050006 | White | 2 x power, 1 x Twin port 5Amp USB Charger, 1m mains lead to 3 pole connector |

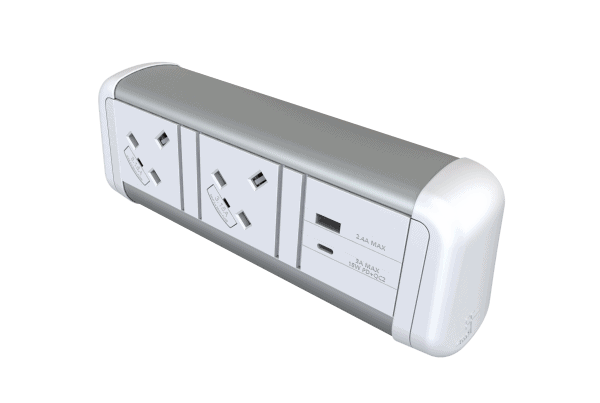

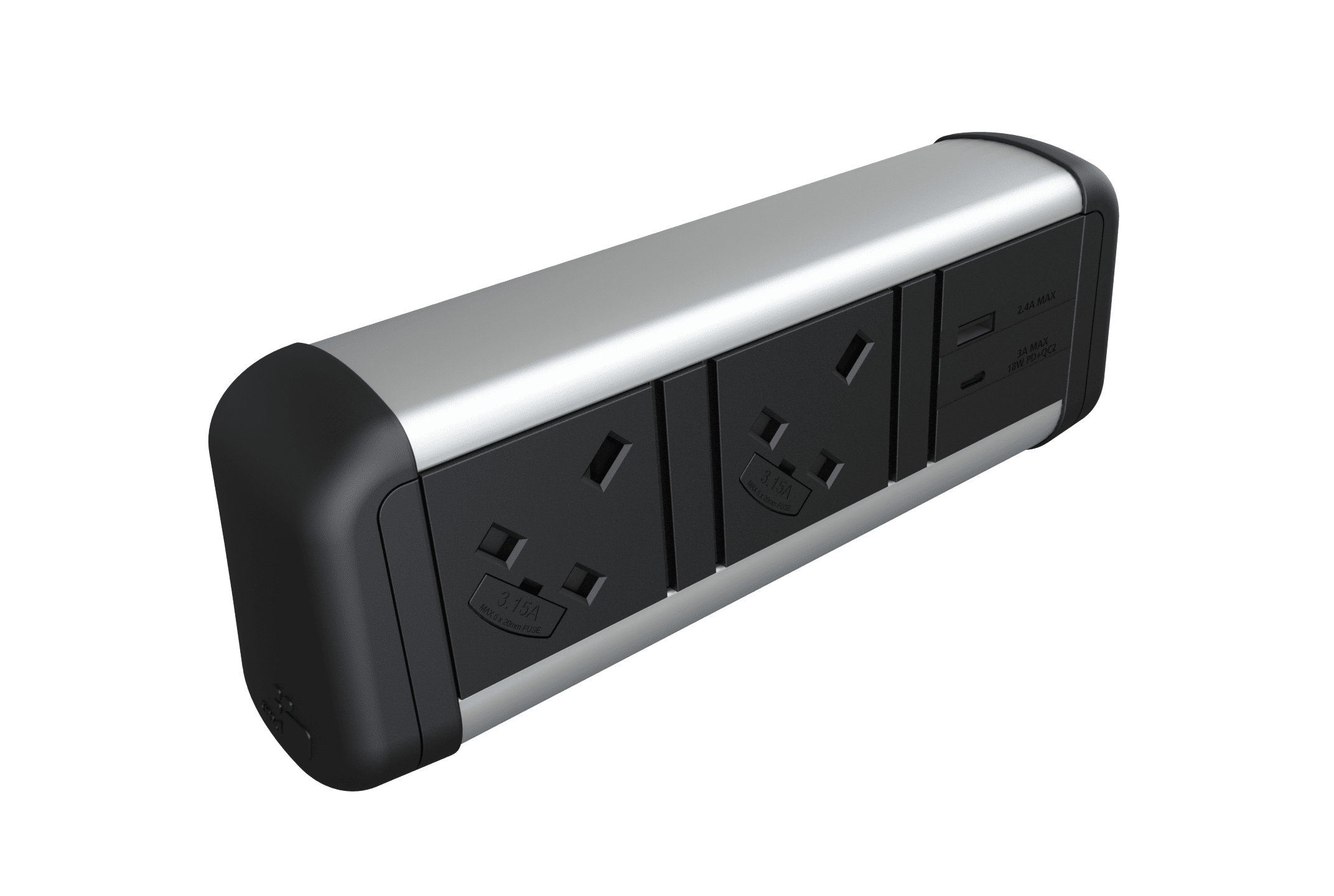

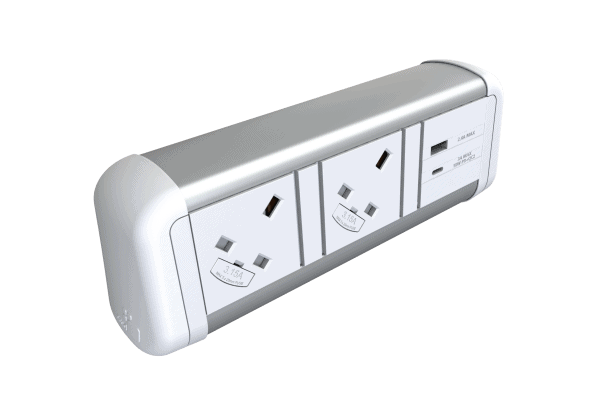

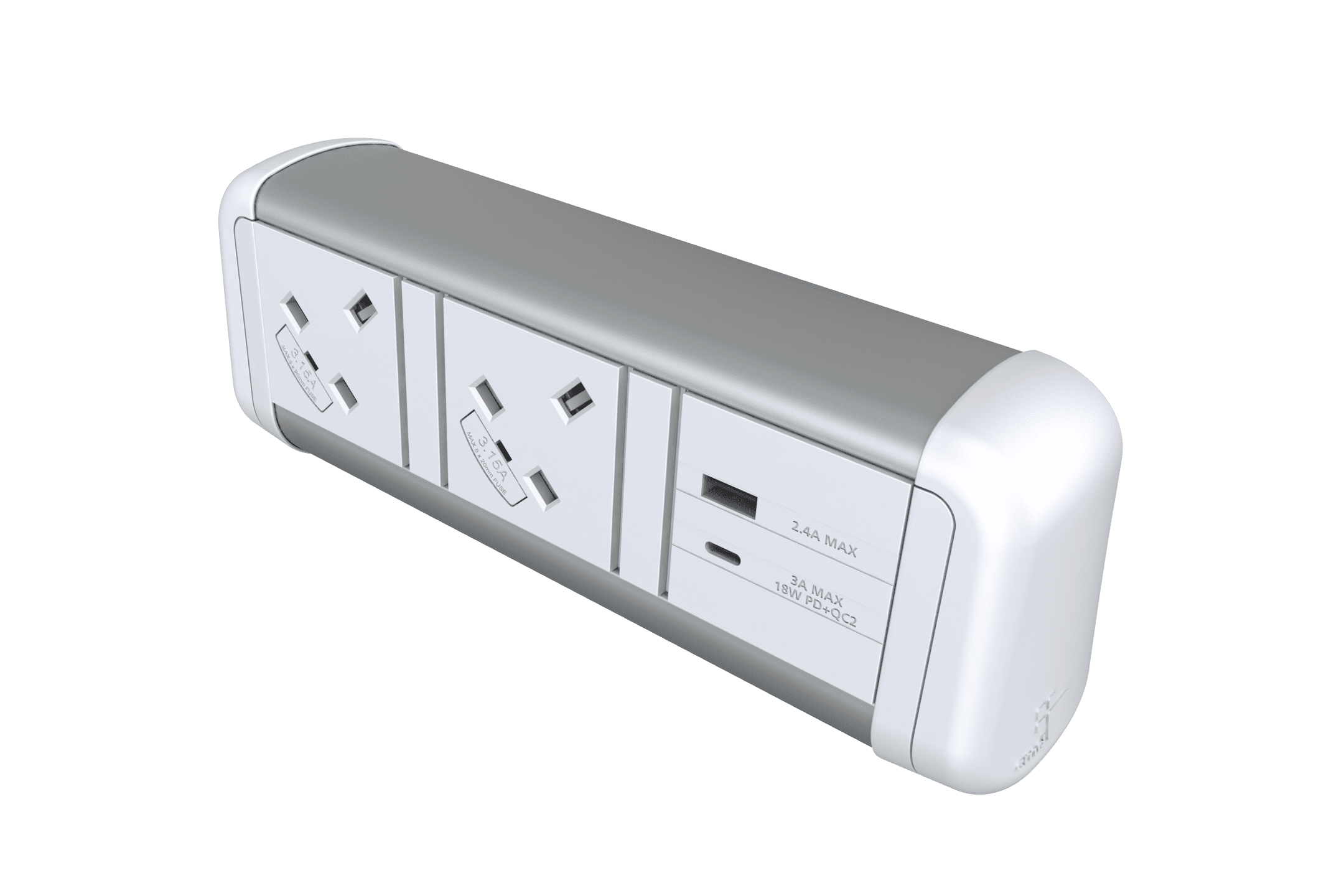

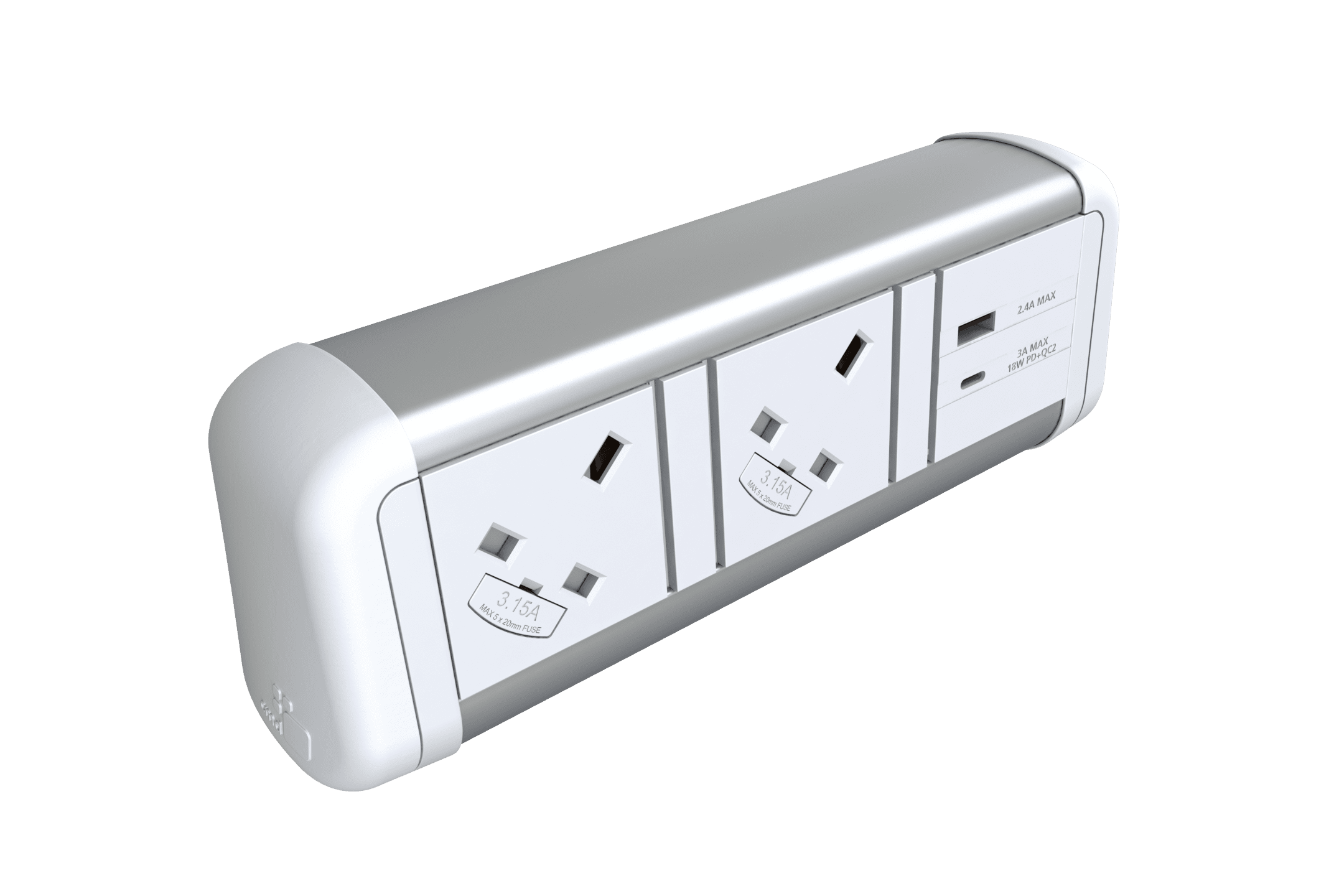

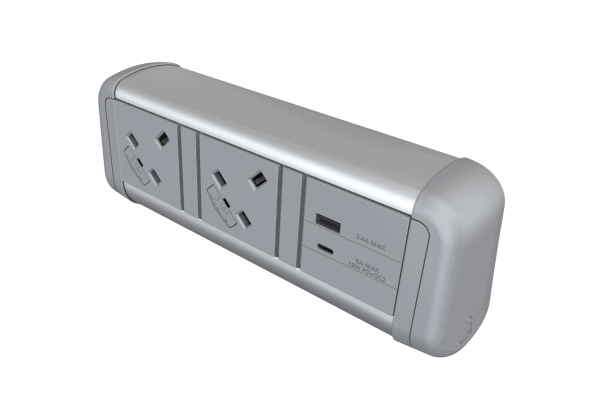

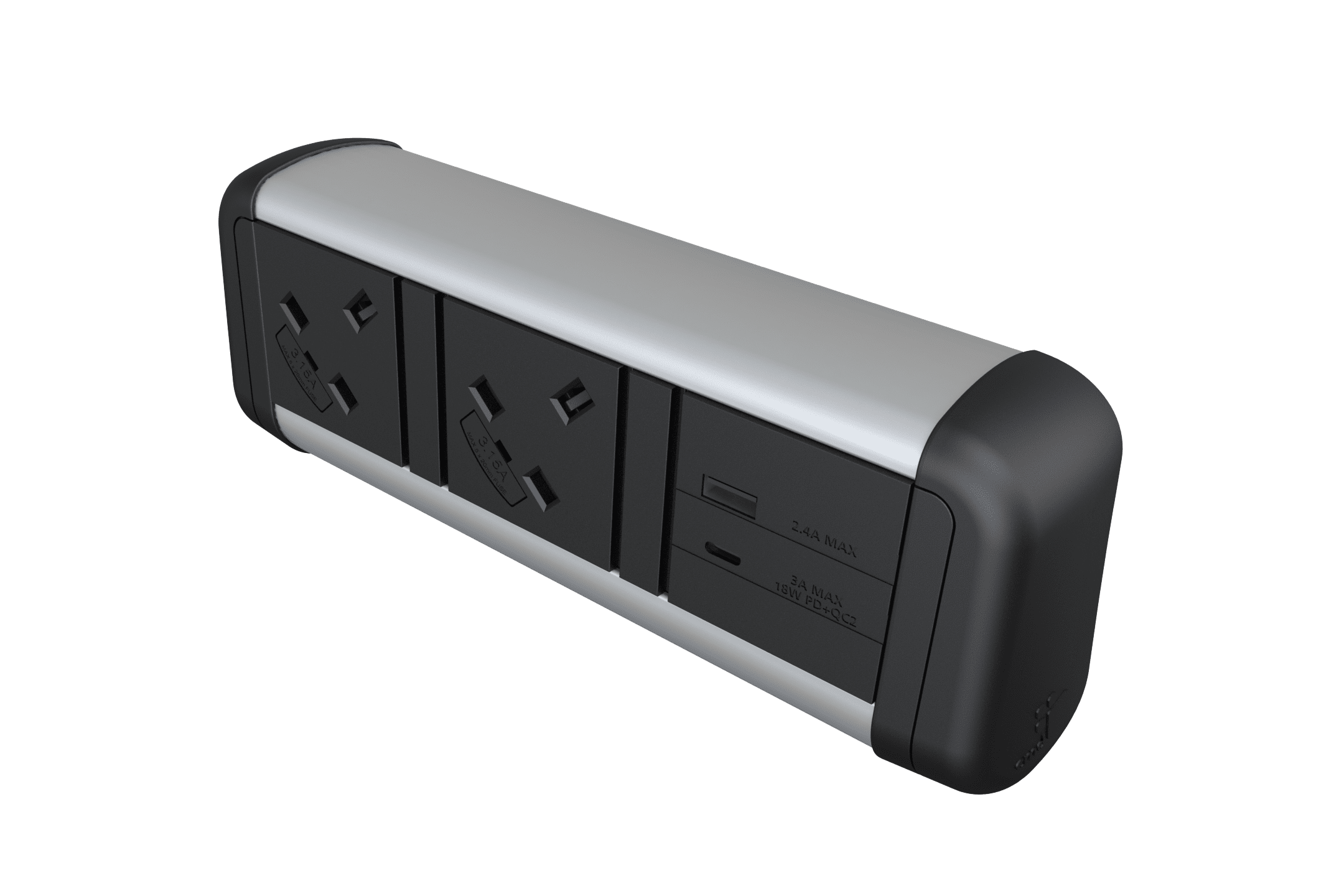

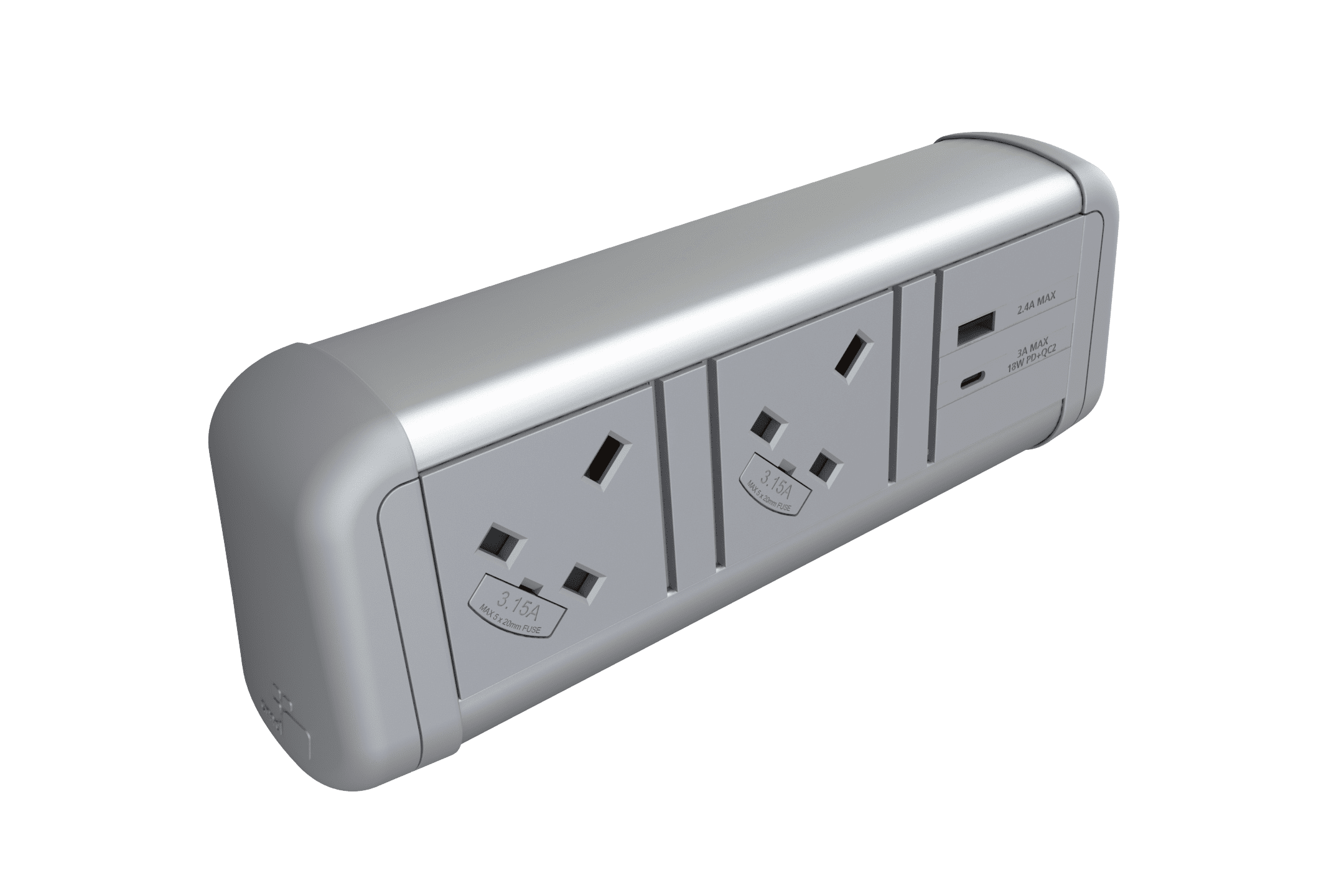

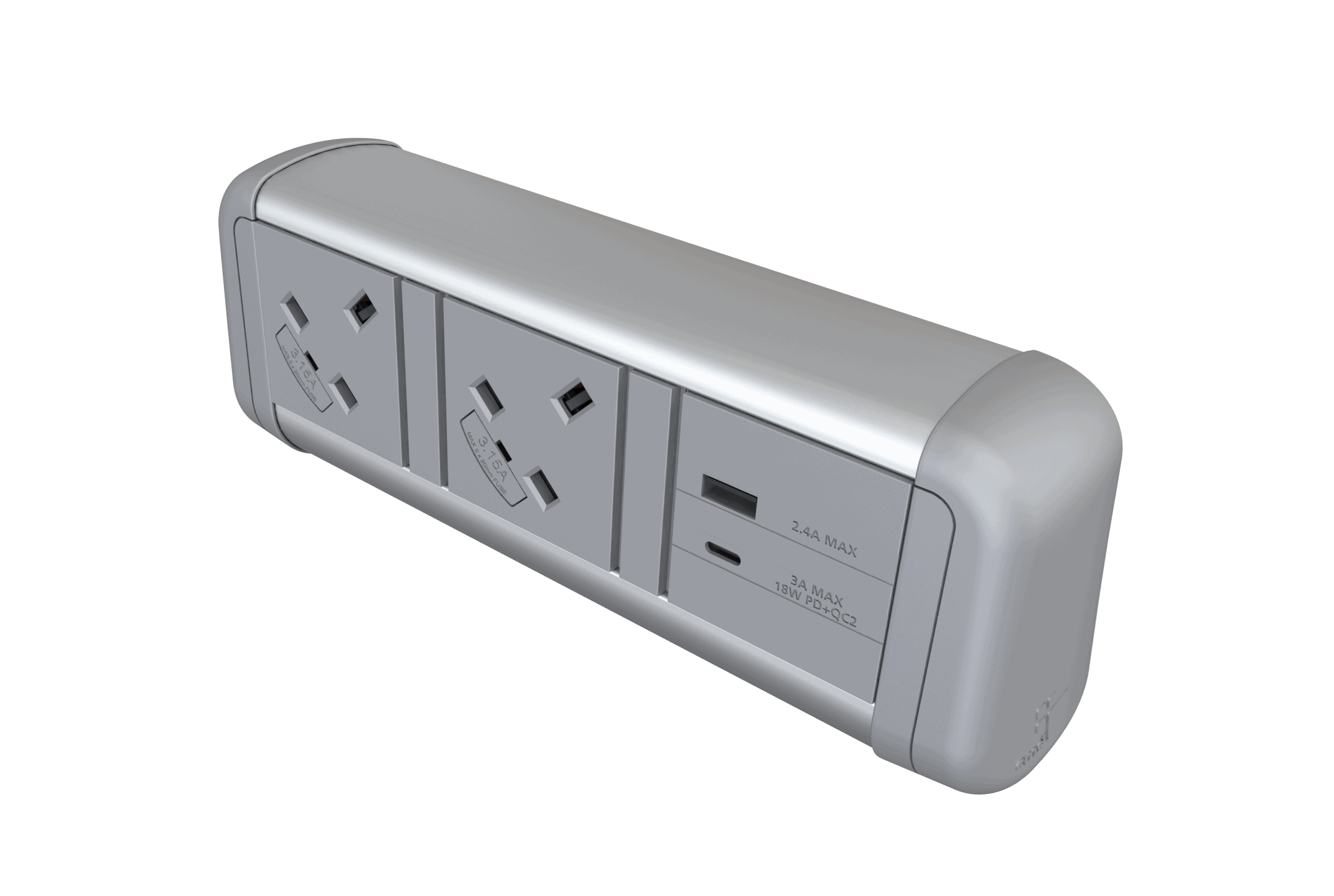

| 94AC0004 | Black | Contour 2 x power, 1 x twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94AC0005 | Grey | Contour 2 x power, 1 x twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94AC0006 | White | Contour 2 x power, 1 x twin port Type A and C USB charger, 1m mains lead to 3-pole connector |
| 94MUS03BGST | Black | 2 x power, 2 x RJ45 data Cat6, 1m mains lead to 3 pole connector |
| 94MUS03GGST | Grey | 2 x power, 2 x RJ45 data Cat6, 1m mains lead to 3 pole connector |
| 94MUS03WGST | White | 2 x power, 2 x RJ45 data Cat6, 1m mains lead to 3 pole connector |
| 94MPS02BGST | Black | 4 x power, 1m mains lead to 3 pole connector |
| 94MPS02GGST | Grey | 4 x power, 1m mains lead to 3 pole connector |
| 94MPS02WGST | White | 4 x power, 1m mains lead to 3 pole connector |
| Contour C clamp | ||
| 440371 | 32mm maximum recommended desk thickness | |
| Adhesive Fixing Kit | ||
| 440006 | 2x adhesive fixings | |
| Data Cables | ||
| 161713 | 3m Cat 6 data cable. Male to male connector. | |
| 161239 | 2m USB data cable. Male to male connector. | |
| 161718 | 2m HDMI data cable. Male to male connector. |
Additional information
| Product Type | Cable Management |
|---|---|
| Delivery | £13 / Free if order value of £750+ |
| Installation | Installation is not included, please contact us if you would like a quote. |
